Strain gauge load cells for crash test dummies, universal neck, Q10 child / M55646
M55646
High-accuracy strain gauge load cells for robust force measurement in neck applications, optimized for severe crash loads and repeatable dummy testing.
主要特点/优势
- Designed for Q10 child dummies
- Digital (DTI) or analog output configuration
- Low nonlinearity and hysteresis for repeatable force measurement
- Drop-in fit for neck installation in the dummy
- SAE J211/1 polarity for consistent and comparable data
- Optional UPS memory module for fast setup

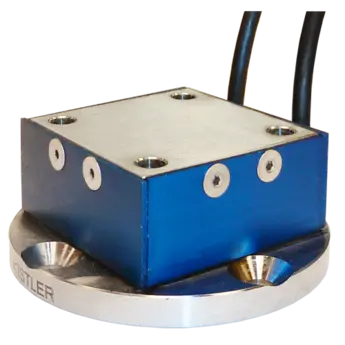

The six-axial universal neck load cell Type M55646 is designed to measure forces and moments acting in the upper neck and/or lower neck of the Q10 (10-year-old) crash test dummy. Integrated directly at the designated neck location, it provides comprehensive multi-axis load data for assessing cervical spine loading and injury mechanisms in child occupant crash testing.
